CO Catalyst
Catalytic Combustion Corporation designs, engineers, and manufactures Oxidation Catalysts for Natural Gas Turbines and Heat Recovery Steam Generators.
Conventional CO Oxidation Catalyst:
- Catalyst inlet temperatures >700° F
- Pipeline quality natural gas fueled turbines
Sulfur-Resistant:
- Catalyst inlet temperatures <700° F
- Variable composition natural gas or dual fueled turbines.
Catalyst Reclaim Services:
- We return the precious metal value in the most efficient way for you (credit toward purchase or pay out).
- Realize the asset into usable liquidity.
- Reclaim is negotiated on a per case basis. Contact us for a prompt response.
Features
Applications:
- Combined Cycle Gas Turbine Power Plants
- Simple Cycle Gas Turbine Power Plants
- Baseload and Peaker Operations
- New Install, Replacement, or Retrofit
Product Performance:
- High activity catalyst formulations
- Compact footprint
- Low backpressure
- Proven coatings provide superior lifespan
- Low oxidation of SO2 to SO3
- Low oxidation of NO to NO2
- Sulfur-resistant formulation option for low temperature gas turbine sites or for sites with variable fuel quality
- Wide operating temperature range of 450° F to 1250° F
- Catalyst Management Plans to extend useful life

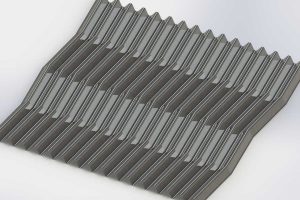

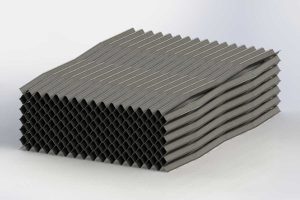

Metallic Substrates Engineered to Boost Performance
Features stacked foil layers of micro-corrugated foils
- Herringbone foil pattern induces faster mass transfer yielding higher performance compared to straight patterned foils
- High heat transfer and low thermal inertia
- High resistance against thermal and mechanical shocks
- Cell densities from 100 to 320 cpsi are available
- Flexible flow depths are available
- 100% stainless steel frame construction, easy to integrate into ductwork
